STAINLESS STEEL PADDLE MIXERS
POWDER MIXING EQUIPMENTS WITH VARIOUS SIZE AND FEATURES.
LEO SERIES
MIXING OF TWO OR MORE POWDERS INTO EACH OTHER
MIXING OF FLOUR ADDITIVES, VITAMINS, ANIMAL FEED INGREDIENTS,
DETERGENTS, COLOURING, ANTI-CAKING, ANTI-MOIST AGENTS INTO POWDER.
OPTIONAL PULVERIZED LIQUID ADDITION INTO MIXTURE UNIFORMLY
OPTIONAL GRINDER TO DOWNSIZE THE MIXTURE INGREDIENTS
|
|
|
|
|
|
|
| MODEL
(BATCH MIXER) |
Min. Mixing Amount * (kg) |
Optimum Mixing Amount * (kg.) |
Net Mixing Volume (lt.) |
Power Requirement (kW) |
| LEO -2 |
1 |
2,5 |
4 |
0,18-0,25 |
| LEO - 6 |
2,5 |
6 |
10 |
0,25-0,37 |
| LEO - 20 |
8 |
20 |
32 |
0,25-0,37 |
| LEO - 50 |
20 |
50 |
80 |
0,75-1,1 |
| LEO - 100 |
40 |
100 |
160 |
1,1 |
| LEO - 200 |
80 |
200 |
320 |
1,1-2,2 |
| LEO - 350 |
140 |
350 |
500 |
2,2-3 |
| LEO - 500 |
200 |
500 |
800 |
4 |
| LEO - 750 |
300 |
750 |
1200 |
5.5 |
| LEO - 1000 |
400 |
1000 |
1600 |
7.5 |
| LEO - 1500 |
600 |
1500 |
2400 |
11 |
| LEO - 2000 |
800 |
2000 |
3200 |
15 |
| LEO - 2500 |
1000 |
2500 |
4000 |
2 x 7,5 |
| LEO - 3500 |
1400 |
3500 |
5000 |
2 x 11 |
| LEO - 5000 |
2000 |
5000 |
8000 |
2 x 15 |
| |
*
Capacity evaluation
for materials with a specific gravity of 1 kg / liter |
|
|
| |
|
LEO 50 AND LARGER MODELS ARE EQUIPPED
WITH PNEUMATIC VALVES BELOW THE UNIT.
PADDLES COLLECTING THE POWDER IN THE MIDDLE OF THE VESSEL ENSURES
COMPLETE DISCHARGE ERGONOMIC
DIMENSIONS TO DISCHARGE INTO 10-20 KILOGRAM BAGS |
|
|
 |
|
|
| |
|
· FOOD
INDUSTRY
Instantized Products
Milk Powder
Flour Additives
Ready Mix for Bakery
Frozen And Cut Vegetables
Spice Mixture
|
|
|
 |
|
|
|
|
|
· CHEMICAL
INDUSTRY
Detergents
Colouring Agents
Fertilizer Mixtures
· PHARMACEUTICAL
Vitamins
Veterinary Medicine
|
|
|
 |
|
|
|
|
|
· LABORATORY
MIXER

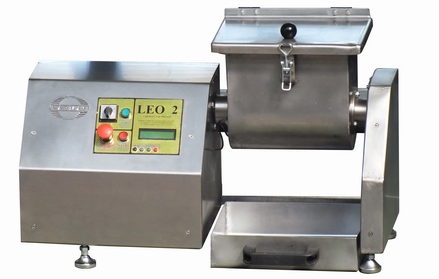

LEO 2
LEO 6
LEO 10
Laboratory Scale Small
Size Industrial Mixers
|
|
|
 |
|
|
|
|
|
LEO 10
LEO 20
Premixing
Scale Production
LEO 2 / 6 / 10 / 20
Rotating Drum for
Product Discharge
|
|
|
 |
|
|
|
|
|
· ANIMAL
FEED
INDUSTRY
Bovine or Sheep Feed
Poultry Feed
Fish Food
Pet Food Mix
Feed Premixing
|
|
|
 |
|
|
|
|
|
(Optional) SCREW CONVEYORS
Vertical and Horizontal Screw
Conveyors Made Of AISI 304 /AISI 316 Grade Stainless Steel
Filling Product Into LEO Mixers
With Product Hopper
Discharge of Product Into 10-20
Kgs Bags
Automated With Pedal And Scale
To Synchronise Filling
|
|
|
 |
|
|
|
|
|

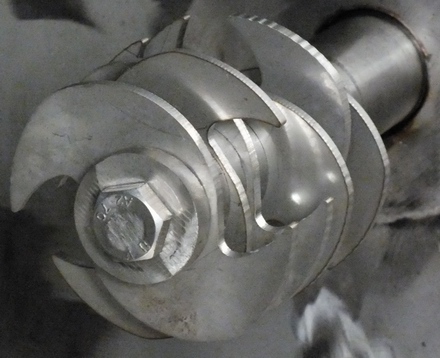

(Optional) GRINDERS
Fitted In Grinder Blades
* Homogenize Materials
* Penetration of Sauce, Creme etc. Materials Into Powder
Particles |
|
|
 |
|
|
|
|
